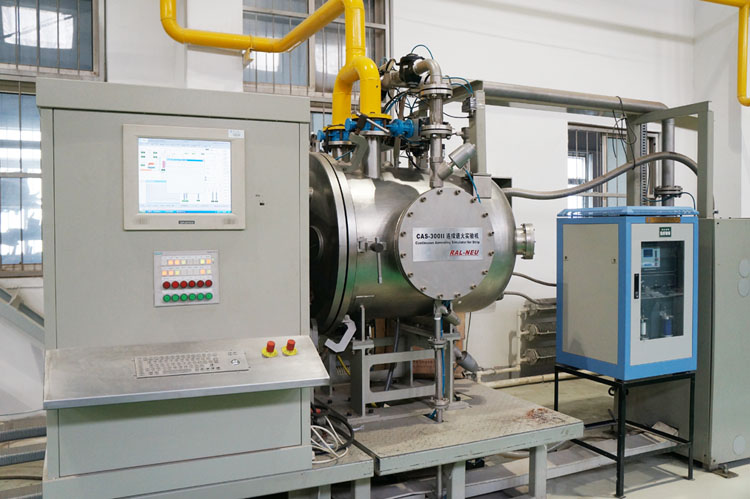

CAS-200 Continuous Annealing Simulator for Strip Steel
1. Function:
Based on the thought and method of physical simulation, CAS—200 Continuous Annealing Simulator simulates the process of heating, cooling, furnace atmosphere and other process during cold-rolled strip steel annealing. Therefore, the relationship between annealing process and microstructure and properties of materials can be observed, which promotes the development of cold-rolled product, the development and optimization of annealing process, and serves practical production.
2. Technological(Equipment) Process
A piece of steel strip sample →cutting/cleaning →sample loading→ thermocouple welding →setting annealing process→ protective atmosphere adjustment →annealing/cooling (Automation)→ data collection→ printing report
3. Technological Indicators:
Sample size:
Thickness: H=0.3~3.0mm
Width: Wmax=200mm
Length: Lmax=500mm
Annealing temperature: Tmax=1200℃，
Temperature accuracy: temperature difference ≤±10℃(in the range of 300×300mm)
Heating rate: maximum 50℃/s (sample thickness 1.0mm)
Cooling rate: Maximum jet-cooling rate 100℃/s (hydrogen); maximum mist-cooling rate 600℃/s (sample thickness 1.0mm)
Protective atmosphere: Nitrogen and Hydrogen mixed gas, Hydrogen content (0~100%)
Sample Tension: 50~1000kg
Heating power: 150kW
