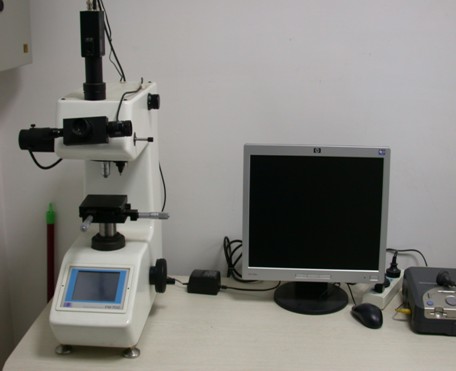

Name: Micro Hardness Tester
Manufacturer: FUTURE-TECH Company in Japan
Purchasing date: April 2002
Main specifications:
1. Load: 10, 25, 50, 100,200,300,500,1000gf
2. Magnification: 100 ×, 500 ×
3. The objective table size: 100 × 100mm
4. Load Time: 5 ~ 99s
5. Load Speed: 50μm / sec
6. Minimum unit of measurement: 0.1μm
7. Data Memory: Up to 999 test data
Equipment model: FM-700
Main application areas:
1. Measure Micro Vickers Hardness of tiny, thin samples and samples with its surface cemented.
2. Measure Micro Vickers Hardness of samples with heat treatment, carbonization, hardened layer, surface coating, steel, non-ferrous metal, micro and thin shaped components.
3. Measure Knoop hardness of glass, ceramics, agate, precious stones and other hard and brittle materials.
4. It mainly applies to material research and testing in scientific institutions, factories and quality supervision departments.
Main functions:
Adopting high-resolution CCD image acquisition system and image processing system, the equipment can automatically measure and analyze indentation. The software can display real-time indentation hardness image, automatically track indentation image and calculate the indentation size, and display real-time hardness results.
Person in charge of the equipment: Xue Wenbin
Location: Room 135, RAL
Ways of contact:
Tel: 83686420
E-mail:
Technical (Safety) Operation Rules
- The machine must be charged by specially-assigned people. Without permission, never operate the machine.
- Before operation, check whether there is any vibration around the machine in case of effecting measuring accuracy.
- Plug in, turn on the main power switch and sub power switch. When the hardness tester is in operation, test mode menu will appear on the display.
- Confirm that the tower and the lift screw can move smoothly and steadily.
- Based on the sample being tested, select appropriate load and dwell time, and adjust the brightness of field of vision.
- Put the sample on X-Y stage, or place it on the holder first and then put on the X-Y stage.
- Observe through the eyepieces, turn the screw on both sides of the eyepiece, and press the reset button to adjust the zero point.
- Lift X-Y stage, focus, and select test points.
- After confirmation, press the start button to automatically load, load holding, unload; measure D1, D2, and calculate the hardness value.
- After experiment, cut off sub power supply first and then cut off the main power supply. Clean the working environment and cover dust shield.
