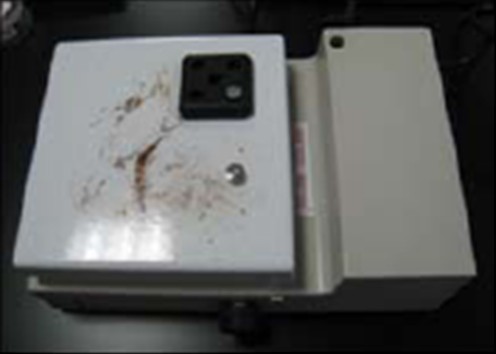

Sample-Fixing Heating Stage
Name: Sample-Fixing Heating Stage
Manufacturer: U.S. GATAN Company
Purchasing date: April 4, 2008
Main Specifications: Constant temperature 130 ℃
Common accessories: paraffin, polishing paste
Main application area: TEM sample preparation
Main function: melting wax and ensuring that the sample sticks firmly to the sample stage
Person in charge of the equipment: Zhang Weina
Ways of contact:
Tel: 13604028597 024-83686411
E-mail:
Location: Room 101, RAL
Operation Rules
- Put the sample stage on the heating stage with a temperature of 130℃.
- After heating for 5 minutes, use wax rod tip to touch the fixing stage surface. Just use a little wax (about 1mm diameter). Let wax sufficiently melt to the flowing state.
- Carefully place the sample on the wax.
- Gently press the sample with a toothpick to make it fixed on the fixing stage. Softly push the sample to move in a small circle to ensure that the wax is even and thinly distributed.
- Remove the sample fixing stage away from heating stage, and cool it down to room temperature.
